235325 24-Port Cat.5e Unshielded Patch Panel, Black
Model Number
235325
SKU
235325

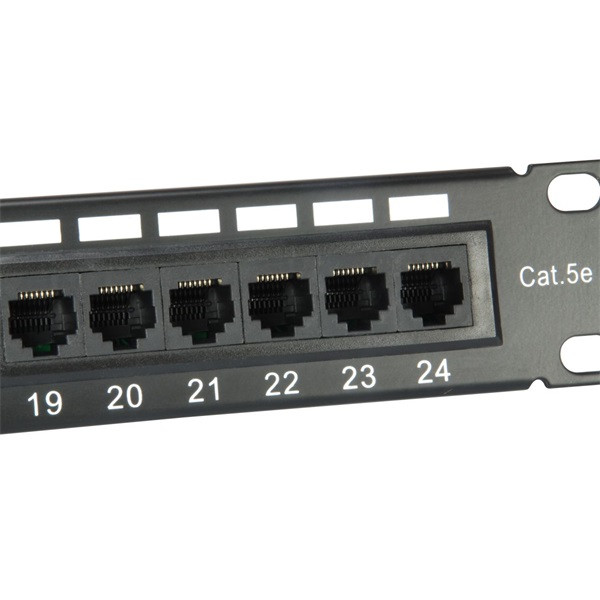

- 24 Ports x Cat.5e RJ45
- Unshielded
- Class D, up tp 100MHz, 10/100Base-T, 1GBase-T
- Compliant with ANSI/TIA/EIA 568 standard

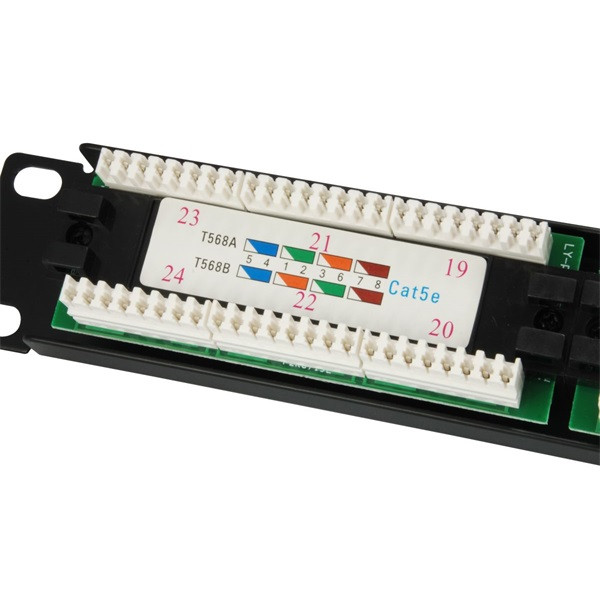

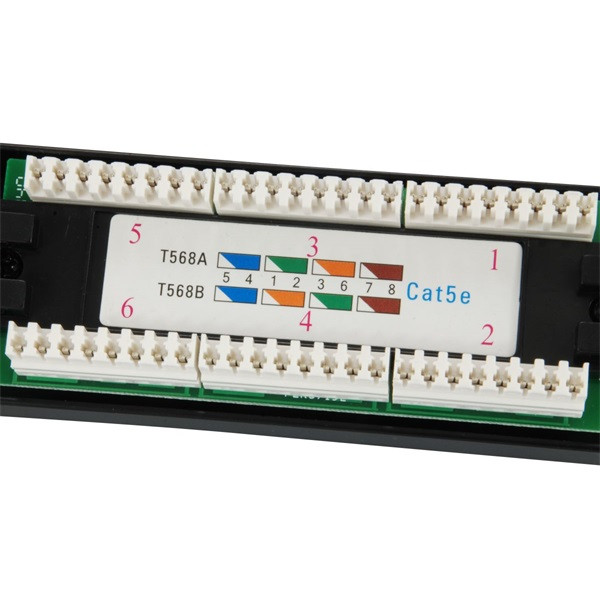

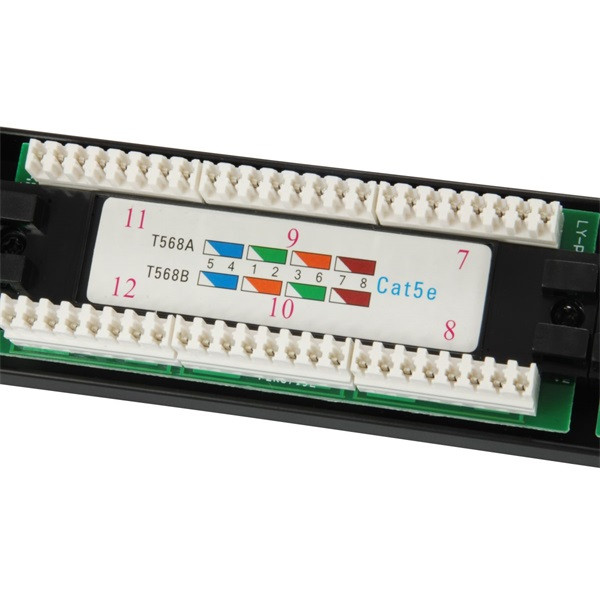

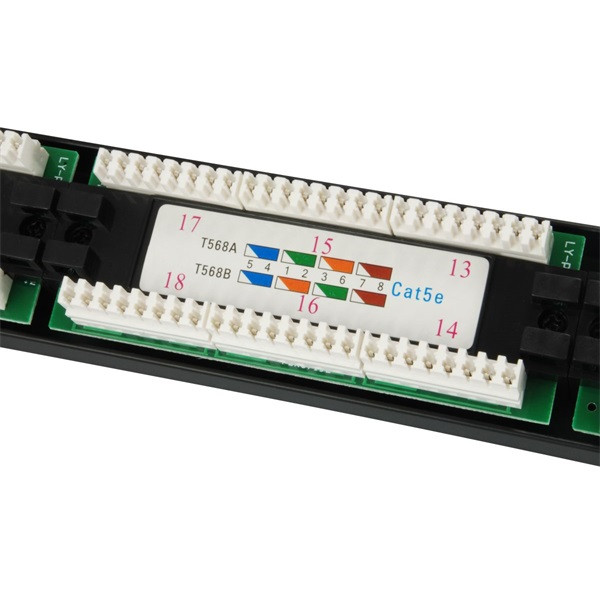

- IDC T568A/T568B Color Coded
- Dual IDC (LSA and 110) compatible
- 19", 1U
- Material: Strudy Steel
- Color: Black (RAL 9005)

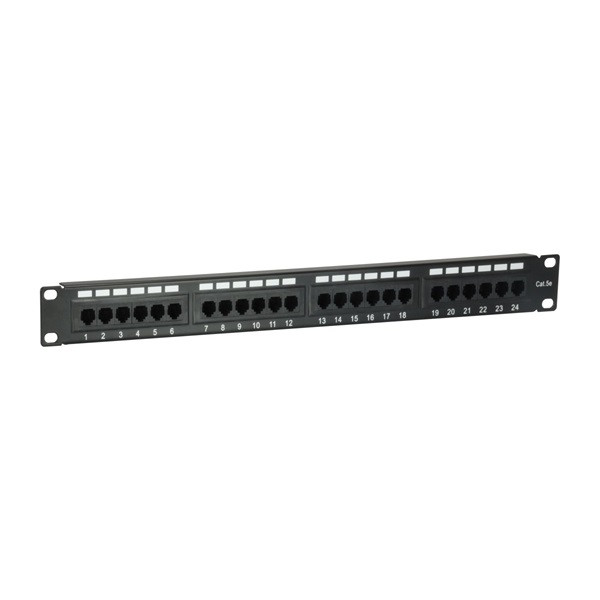

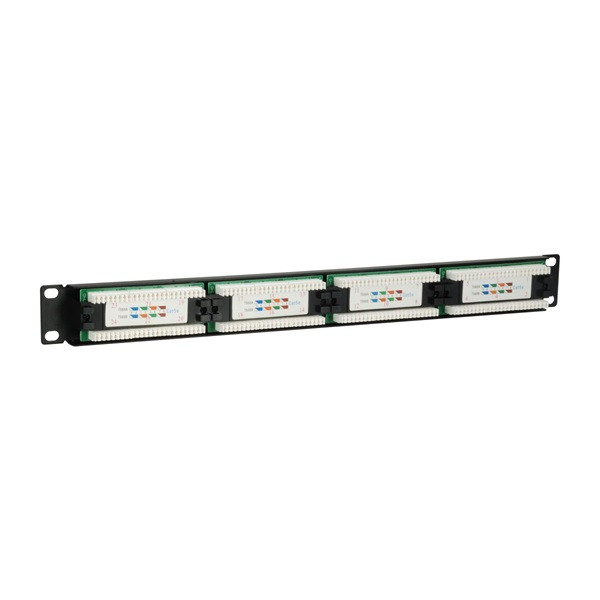

The equip® Patch Panel is a 19" 1U network distribution unit integrating cable management system for better routing and strain relief requirements, suitable for both LSA and 110 standards. Featuring 24 x RJ45 ports, this patch panel is recommended to connect with equip® patch cords and cabling accessories to achieve outstanding performance. Moreover, each port is marked with port number for recognition
